1. Charging control system: software controlled program-controlled power supply, freely set
voltage to charge energy storage power supply
2. Charging monitoring system: The software can monitor the programmed power supply to give the
voltage and current in the charging process of the energy storage power supply and calculate the charging
amount
3. Ac-to-dc system: Monitors the AC output parameters to automatically calculate and set theback-
end DC load pulling value
4. Fast charging decoy function: Support QC/PD fast charging function
5. DC discharge monitoring system: monitors the voltage and current parameters of the DC
output discharge of the energy storage power
6. Charge and discharge capacity calculation: can support the capacity of the range of
determination, such as setting the cut-off discharge capacity to reach the set value can
stop aging orexecute the next project
7. Multiple load combinations: The aging cabinet supports multiple load combinations
Performance parameters

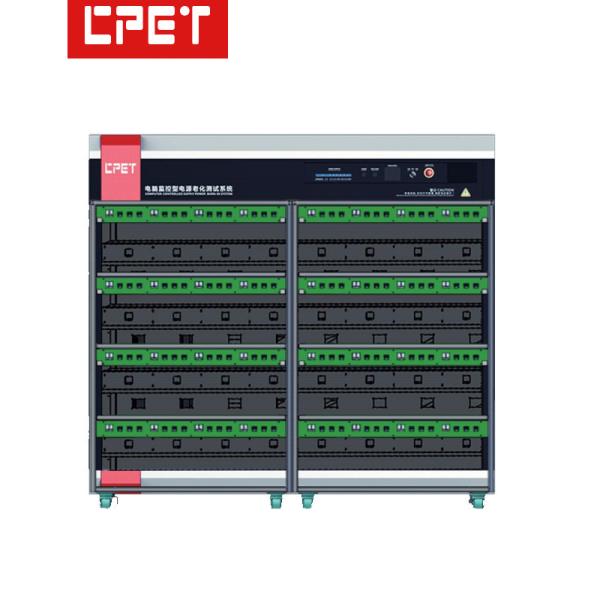

Burn-in cabinet structure
and Burn-in quantity
planning | Trolley size (mm) | L2050*W700*H2050mm (size of a single Burn-in cabinet) |
| Number of trolley layers | 4 layers, product area depth 400mm, (12 Burn-in positions per layer) |
| Trolley height | 350mm |
| Trolley structure material/appearance color | 2.0mm thick cold rolled sheet, computer white |
| Load area cooling method | Top turbine exhaust fan top row type (easy to control the ambient temperature) |
| Layer insulation and anti-static method | Epoxy insulation board with heat dissipation holes on the surface |
| Overall burn-in room structure | Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine |
